IEC 60529 IP5X Ingress Protection Test Equipment , IP6X Dust Test Chamber

Standard:IEC 60529, EN 60529Application:Water Spray Testing For IP5X IP6X
Interior Material:SUS#304 Stainless Steel PlatePower:Electronic
Flow Rate Of Dust (m/s):5m/sTesting Room:1000*1000*1000 (can Be Customerized)
Concentration Of Dust:10kgController:Touch Screen Controller
High Light:IP5X Ingress Protection Test Equipment ,  IEC 60529 Ingress Protection Test Equipment ,  IP6X Dust Test Chamber

IP5X IP6X Dust Proof Test Chamber Applied LED Luminaries IEC60529

Dust Chamber Features:
— Stainless steel interior 304, mirror polished
— Stainless steel funnel
— Two vibrators on funnel sides to prevent dust deposits
— Timer for triggering funnel vibrators
— Heaters on funnel sides for dust drying
— Mesh product shelf stainless steel
— Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.
— Big easy cleaning filter removes the dust from vacuum circuit protecting the instruments
— Dust circulating turbine with brushless motor – adjustable speed
— Two air flow totalizers to cover hole range of airflows, each with its own activation valve
— Timer for proSCamming chamber operation
— Talcum powder 20kilos included

Dust Chamber Parameters:

Internal dimension (D*W*H) mm1000*1000*1000 (can be customerized)
External dimension (D*W*H) mm1300*1300*2200
Interior materialStrong Stainless steel
Exterior WallPainted Steel
Viewing windowThere is viewing window on the door, allow operator to see the specimen
Specimen power socketDust-proof socket
ControllerProSCammable touch screen controller
Metal net dimensionNominal line diameter is 50um, nominal separation distance between line 75um
Air blowerAll plastic centrifugal fan
Vacuum systemEquipped with pressure gage, air filter, three pieces of pressure regulation, and connection tube ,vacuum pump is optional
Concentration of dust10kg
Testing Temp5~25°C
Flow rate of dust (m/s)5m/s
cement amount2kg/m3 ~ 4kg/m3
Testing Timecontinuous1-9999(S,M,H)adjustable
AccessoriesVacuum pump, Dustproof plug (220V), Wiper, Casters with adjusters
Power SourceAC220V 50Hz 2KW

Dust Chamber Application:

DUST CHAMBER SC-DC56 is intended for determining the deSCee of protection against harmful deposits of
dust (IP5X) and against inSCess of dust (IP6X). Dust protected enclosures to numeral 5 allow a limited quantity
of dust to penetrate under certain conditions. Dust-tight enclosures to numeral 6 do not allow any dust to penetrate.
Dust Chamber Standards:

Assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.
Confirm to standards:
IEC 60529 IP5X IP6X;
BS EN 60529;
IEC 60884-1;
IEC 60068-2-68;
IEC 60598-1;
IEC 60335-1;
IEC 61558-1;
IEC 61386-23;
and so on.
Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.
Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: waterproof and dustproof (IP) environmental test equipment; switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; household appliances safety test equipment; wire and cable test equipment; luminaires test equipment; electric tools test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.

Dust Chamber Details:

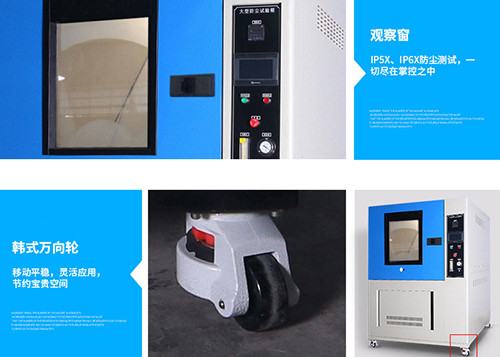

IEC 60529 IP5X Ingress Protection Test Equipment , IP6X Dust Test Chamber 0

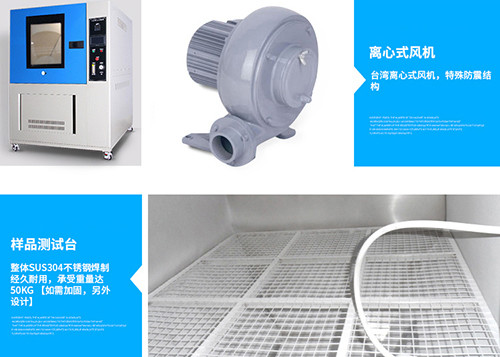

IEC 60529 IP5X Ingress Protection Test Equipment , IP6X Dust Test Chamber 1

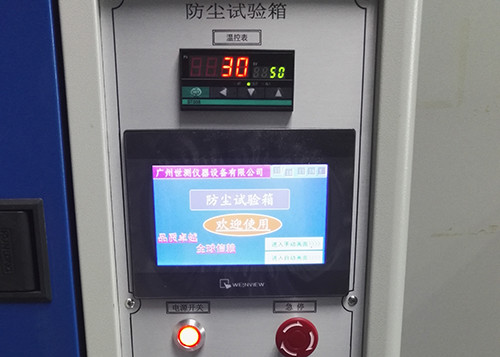

IEC 60529 IP5X Ingress Protection Test Equipment , IP6X Dust Test Chamber 2
