50J Impact Testing Apparatus , CNAS IK Striking Elements

Usage:Impact Testing MachineProduct Name:Impact Testing Machine/Drop Impact Test Machine/drop Tester
Impact Energy:2J, 5J, 10J, 20J, 50JFunction:Impact Test
High Light:CNAS 50J Impact Testing Apparatus ,  CNAS 5J Impact Testing Apparatus ,  CNAS IK Striking Elements

IK striking elements impact test equipment drop test apparatus


PendulumLength: 1000mm; external diameter: 9mm; steel pipe wall thickness: 0.5mm. Composition of the equivalent mass with impact element
Impact pointUp and down adjustable, stroke 200-1200mm, height can be customized

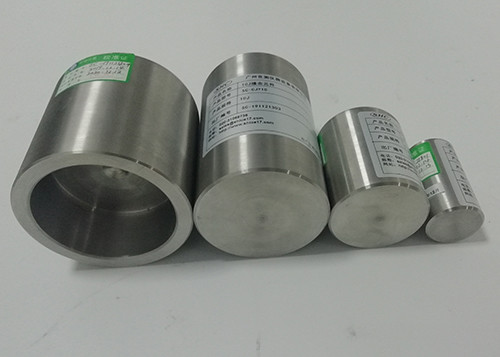

Impact element2, 5,10, 20J impact hammer
Drop heightScale display
Release modeMechanical

Co-ordinated characteristics of the striking elements

Energy /J≤1 ±10%2 ±5%5 ±5%10 ±5%20 ±5%50 ±5%
Equivalent mass ±2%kg0.25(0.2)0.51.75510
MaterialPolyamide 1)Steel 2)
l/mmTo be adjusted to match the equivalent mass, see Annex A.
1) 85≤HRR≤100, Rockwell hardness according to ISO2039-2. 2) Fe490-2, according to ISO1052; Rockwell hardness according to ISO6508.
NOTE- The values shown in the brackets for the equivalent mass and the diameter of the striking elements for the energy value equal to or less than 1 J are those in the current test Ef. The values currently in test Eg are also shown for these two parameters. For co-ordination purpose, the values in brackets will be deleted fives years from the publication of this standard.


IEC60068-2-75 Environmental testing – Part 2: Tests – Test Eh: Hammer tests, IEC60068-2-63, IEC62262 Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code), IEC60439-5 Low-voltage switchgear and controlgear assemblies – Part 5:Particular requirements for assemblies for power distribution in public networks


Equipment using the car structure, can be moved left and right, forward and backward, the upper and lower impact point height adjustable, and the impact angle 0-90°adjustable. The device is a low energy pendulum impact device for 2J and above.


This device is suitable for mechanical impact strength test to electric cabinets and other sheet metal, shell of Non metal electric energy metering cabinet, substation cable switchboard and cable junction box

Test sample

The shell of electric energy metering cabinet, substation cable switchboard and cable junction box and similar equipment

Impact energy, equivalent mass and drop height table

Equivalent mass /kg0.51.75510
Drop height ±1%mm400300200400500
Notes: 1. See note in IEC 60068-2-75 3.2.2 1. In this part, the energy (J) is calculated taking the standard acceleration due to the earth’s gravity(g), rounded up to the nearest whole number, that is 10m/s².
