Ground Recessed Luminaires Led Testing Equipment

Standard:IEC 60598-2-13 Clause 13.6.1, 13.6.2Customize:OEM, ODM
Controller:Mitsubishi PLCDisplay:Touch Screen
Station:1 StationTest Object:Ground Accessed Luminaires
Test:Static Load Test And Torque TestMax. Load:20KN
Rubber Punch:Diameter 50mm, Thickness 50mmMaintain Time:5-10s For Torque Test, 1min For Static Load Test
High Light:20KN Led Testing Equipment ,  IEC 60598-2-13 Led Testing Equipment ,  IEC 60598-2-13 force testing equipment

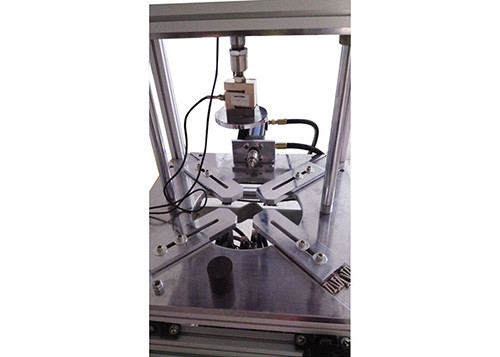

IEC60598-2-13 Ground Recessed Luminaires Light Testing Equipment ​

Main technical parameters:

Power supply380V 50Hz
Test objectground accessed luminaires
Teststatic load test and torque test
Max. load20KN
Rubber punchdiameter 50mm, thickness 50mm
Maintain time5-10s for torque test, 1min for static load test
Station1 station
StandardIEC 60598-2-13 Clause 13.6.1, 13.6.2
ControlMitsubishi PLC
DisplayTouch screen

Production introduction:

This test equipment conforms to IEC 60598-2-13 clause 13.6.1 and clause 13.6.2 standard requirements.

It is used for the ground accessed luminaires static load test and torque test.

This equipment is controlled by PLC electrical system, the whole operation is controlled on the touch screen, all the parameters can be preset on the touch screen, include every selection mode of the kettle, the touch screen with the functions of manual operation, automatic operation and real-time display.

IEC 60598-2-13

13.6.1 Resistance to static load

Luminaires shall withstand the minimum static load according to the manufacturer’s instruction.

13.6.2 Resistance too torque and shear loads
Luminaires designed to be used in areas where motor vehicles may circulate, carriageways, parking areas, etc.

shall withstand the forces exerted by a turning, breaking or accelerating tire.

Test details please reference to standard discription.
