IEC60529 IPX34 Oscillating Tube Test Chamber

Material:Stainless SteelIP Code:IPX3, IPX4
Temperature:Room TemperatureController:Touch Screen Controller
Standard:IEC60529Needle Hole:Φ0.4mm
Swing Angle Range Of The Oscillating Tube:45°, 120°,360°Swing Speed:IPX3 15times/min; IPX4 5times/min
Rain Pressure:80~150Kpa (adjustable)Oscillating Tube Radius:300mm
High Light:IPX34 Oscillating Tube Tester ,  IEC60529 Oscillating Tube Test Chamber ,  IPX34 Oscillating Tube Test Chamber

IEC60529 IPX34 Waterproof Oscillating Tube Test Chamber IP Test Device


It is used for the testing of IPX3 and IPX4

This equipment is suitable for the test of electrical products which are enclosure and sealed in the rain environment whether can ensure the good performance of equipment and components.

The scientific design of this equipment, so that the equipment can be realistically simulated dripping water, water spraying, splashing water etc.

The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack.

The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.

Technical parameters:

1Inner box size (mm):800×800×900(L×W×H) (can be customerized)
2Rotating speed(rpm):1 ~5 adjustable, turntable diameter:300mm(IP 1.2 standard. Turntable can be tilted 15°).The height of the turntable:200mm, it is adjustable.
3Spray ring radius:(mm): 300.
4Swing angle range of the oscillating tube:45°, 120°,360°
5Needle hole(mm):φ0 .4.
6Distance between holes(mm):50.
7Water flow of each hole:0.07 L/min +5%.
8Spray pressure(Kpa):80-150.
9Pendulum swing: Max.±150°.
10Swing speed: IP3 15times/min; IP4 5times/min
11Testing time:1-999,999min(can be set).
12Rain pressure:80~150Kpa (adjustable).
13The distance between the test equipment and the test sample:200MM. After the test, the function test can be proceeded after normal temperature recovery of 24 H.
14All stainless steel or powder coating, visible toughened glass window.
15Equipped with a modest turntable (used to place the sample) with adjustable speed.
16Control system: Independent research and development.
17Power Supply: 220V 50Hz/230V 50Hz

Conform to:
IEC 60335-1

IP Code of the IPX3 and IPX4

Structural material:

1. High- quality acid -proof stainless steel 304 inner liner.

2. Outer box is made of stainless steel 304.

3. The sample table is equipped with a circular turntable with adjustable speed.

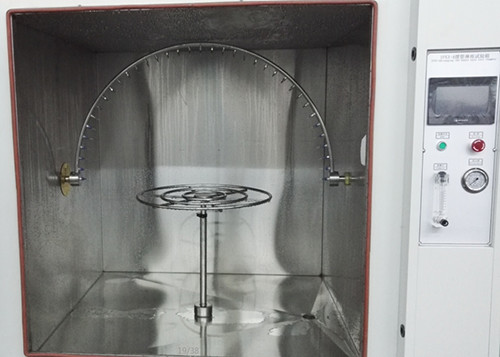

IEC60529 IPX34 Oscillating Tube Test Chamber 0

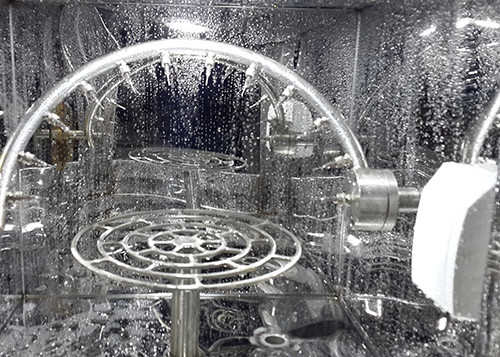

IEC60529 IPX34 Oscillating Tube Test Chamber 1

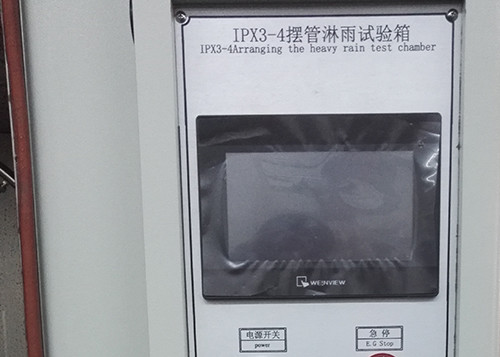

IEC60529 IPX34 Oscillating Tube Test Chamber 2
