Manual IEC60884 Figure 20 Cord Retention Testing Apparatus

Material:Stainless SteelStandards:IEC60884 Figure 20
Warranty:12 MonthsWeight:2N, 3N, 5N, 7N, 8.5N 1pc
Torque:0.1Nm, 0.15Nm, 0.25Nm, 0.35Nm, 0.425NmUses:To Check Whether The Plug Wire And The Electrical Accessory Are Firmly Fixed
Sample Range:Detachable Plug, Detachable Mobile Socket, Non-removable Plug And Non-removable Mobile SocketStructure And Function:According To The Standard, Check The Tightness Of The Plug Wire And Electrical Accessories
High Light:IEC60884 2N Testing Apparatus ,  IEC60884 3N Testing Apparatus ,  IEC60884 7N compression set apparatus

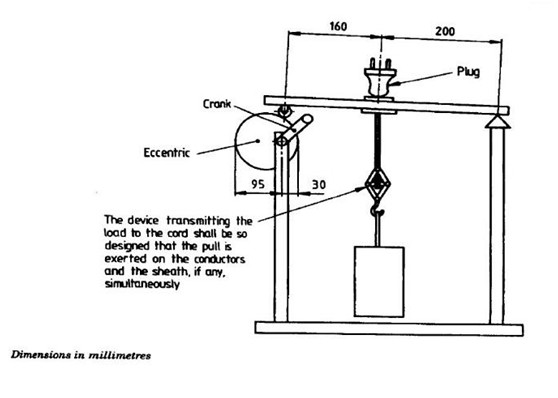

IEC60884 figure 20 cord retention test apparatus manual type

Product details:

This device conforms to the standard of IEC60884-1 table 18.

It is used to test plugs, mobile sockets, fixed parts with wires and their couplings under the protection of the sheath, at the wire terminals or ends. The head is not subject to the stress including the wringing and the wear resistance.

Technical parameters:

Weight2N, 3N, 5N, 7N, 8.5N 1pc
Torque0.1Nm, 0.15Nm, 0.25Nm, 0.35Nm, 0.425Nm
Usesto check whether the plug wire and the electrical accessory are firmly fixed
Sample rangedetachable plug, detachable mobile socket, non-removable plug and non-removable mobile socket
Structure and functionAccording to the standard, check the tightness of the plug wire and electrical accessories

Confirms to:
IEC60884 Figure 20
EN50075 Figure 5


Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.

Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: waterproof and dustproof (IP) environmental test equipment; switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; household appliances safety test equipment; wire and cable test equipment; luminaires test equipment; electric tools test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.

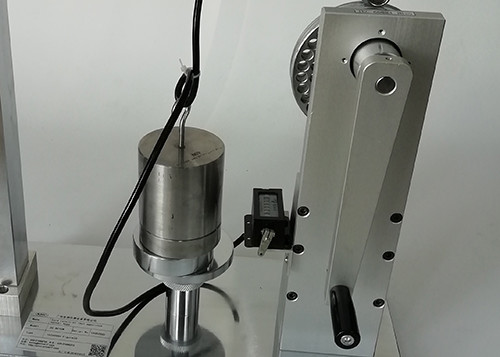

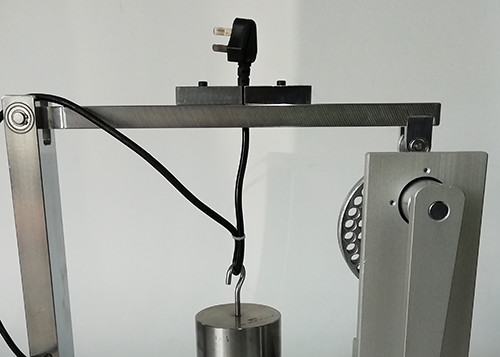

Manual IEC60884 Figure 20 Cord Retention Testing Apparatus 0
Manual IEC60884 Figure 20 Cord Retention Testing Apparatus 1
Manual IEC60884 Figure 20 Cord Retention Testing Apparatus 2
