Standard: | IEC 60529, EN 60529 | Application: | Water Spray Testing For IPX7 IPX8 |
---|---|---|---|
Interior Material: | SUS#304 Stainless Steel Plate | Power: | Electronic |
Testing Time: | 0-99min | Range Of Test Depth: | 0-30mm |
Inner Dimension: | Φ600*H1200mm | Wall Thickness: | 4mm |
Range Of Test Pressure: | 0-0.55Mpa/0-5bar | Vent Pressure Of Safety Valve: | 0.55Mpa/5.5bar |
High Light: | IPX8 Continuous Immersion Water Tank , SUS304 Continuous Immersion Water Tank , ipx7 test |
EN 60529 IPX8 Continuous Immersion Test Equipment Stainless Steel, rain test equipment
Main Technical Parameters:
Model | SC-IPX8-7 |
Inner dimension | Φ600*H1200mm |
Outer dimension | 600*780*1750mm |
Wall thickness | 4mm |
Range of Test depth | 0-30mm |
Range of test pressure | 0-0.55Mpa/0-5bar |
Vent pressure of safety valve | 0.55Mpa/5.5bar |

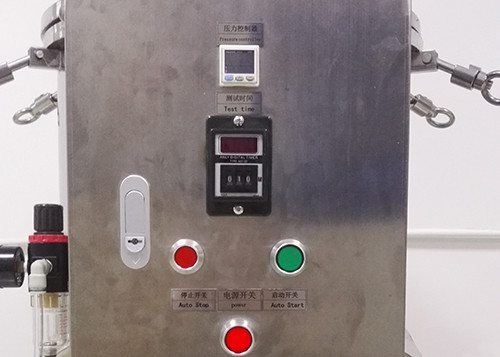

Pressure control mode | Automatic control by pressure sensor |
The way of lifting the cover | Cylinder control cover |

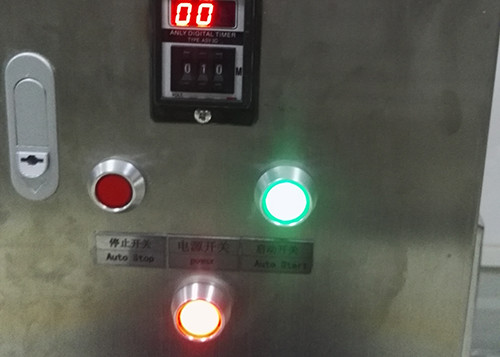

Test time | 0-999min |
Power | 100W |
Feature:

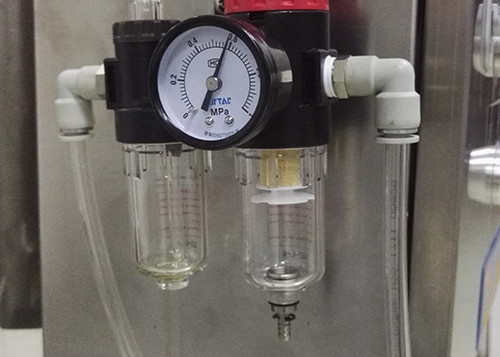

1. Entire tank adopts SUS304# stainless steel high accuracy integrated forming, ensure it will not rust and water-tight after long time use, adjust the test pressure according to the high precision pressure regulating valve. Pressure regulating valve with pressure stabilizing function, it can keep stable test pressure all the time after the pressure has been adjusted.
2.The pot cover is rotated and lifted by the screw thread, it can rotate and move away from the hole after lifting. (when pressure is greater than 50m depth test, must use special flange lock to lock cover)
3.The whole tank surface blasting treatment, smooth and beautiful.
Description:
Assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.
Confirm to standards:
IEC 60529 IPX7 IPX8;
EN 60529 IPX7 IPX8;
IEC 60884-1;
IEC 60598-1;
IEC 60335-1 and so on.
More details:
