Fig38 IEC60884-1 IEC Test Equipment , 20N Compression Test Apparatus

Material:Stainless SteelStandards:IEC60884 Figure 38
The Force Applied Through The Jaws:20NTest Place:In A Heating Cabinet
Testing Temperature:(80±2) °CFunction:For Compression Test For The Verification Of Resistance To Heat Of 25.4
Number Of Steel Jaws:2Corners:Radius Of 2,5 Mm
High Light:IEC Test Equipment CNAS ,  CNAS IEC Test Equipment ,  20N Compression Test Apparatus

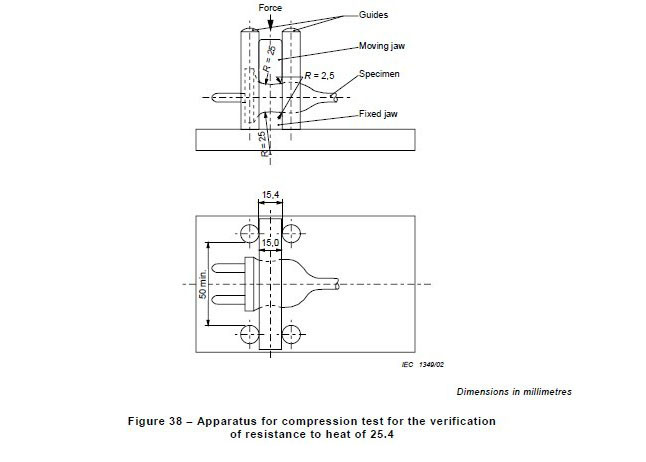

IEC60884 Figure38 Apparatus for compression test for the verification of resistance to heat of 25.4

Product details:

This apparatus confirms to the standard requirement of IEC60884-1 figure 38.

It is used to test the pressure-resistant properties of the electrical accessories and mounting box under the circumstance of being heated.

This testing equipment should be put into use with the heating box.

This device comprises two steel jaws, having a cylindrical face of 25 mm radius, a width of 15 mm and a length of 50 mm. The length of 50 mm can be increased, depending on the size of the accessory to be tested. The corners are rounded with a radius of 2.5 mm. The specimen is clamped between the jaws in such a way that these press against it in the area where it is gripped in normal use, the centre line of the jaws coinciding as nearly as possible with the centre of this area. The force applied through the jaws is 20 N. The test occurs in a heating cabinet at a temperature of (80±2) °C.

Standard outfit:
2 steel jaws, a moving jaw and fixed jaw, cylindrical face of 25 mm radius, width of 15 mm and length of 50 mm,

the corners with a radius of 2,5 mm,
1 weight of 20N,
4 brackets for fixed jaws


IEC60884 1 figure 38 and clause 25.4,

VDE 0620 figure 37,

BS 1363 figure 23.

Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.

Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: waterproof and dustproof (IP) environmental test equipment; switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; household appliances safety test equipment; wire and cable test equipment; luminaires test equipment; electric tools test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
