Verify Protection Against Access IP4X Test Probe D

Standards:IEC61032 Figure 4Warranty:12 Months
Test Probe Diameter:Ф1+0.050 MmDam-sphere Diameter:SФ35±0.2 Mm
Handle Diameter:Ф10 MmTest Probe Length:100±0.2 Mm
Handle Length:100 MmForce:3N
High Light:IP4X Test Probe D ,  3N Test Probe D ,  IEC61032 finger probe test

Test Probe D Figure 4 IP4X To Verify Protection Against Access

Specification and technical parameters:

Parameters /ModelSC-F4DSC-F4D-F
NameTest rod probe DTest rod probe D with force
Test probe diameterФ1+0.050 mmФ1+0.050 mm
Dam-sphere diameterSФ35±0.2 mmSФ35±0.2 mm
Handle DiameterФ10 mmФ10 mm
Test probe length100±0.2 mm100±0.2 mm
Handle Length100 mm—-
Force—-3N force

Product information:

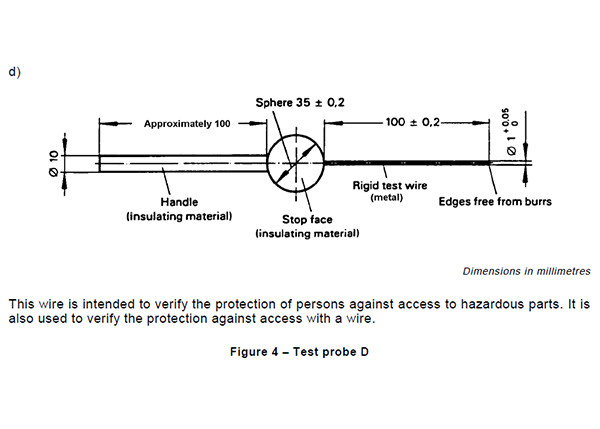

This probe conforms to the standard requirement of IEC61032 figure 4 test probe D and IEC60529 for IP4X and IEC60065.

This wire is intended to verify the protection of persons against access to hazardous parts.

It is also used to verify the protection against access with a wire.

Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with “F” is with force.
