IEC60529 IPX123456 Waterproof Test Chamber IP Testing Equipment
Application:
It is used for the testing of IPX1, X2, X3, X4, X5, IPX6 waterproof degrees testing purposes.
The device to shell protection grade (IP code) based mainly for electrical and electronic products, LED products, lamps, electrical cabinets, communications, digital equipment, transportation and other products to simulate outdoor rain weather conditions, and test the performance of the product is waterproof, to determine whether the corresponding level of protection, in order to product’s design, development and test use.
The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack.
The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.
Technical parameters:
Inner box size (mm) | 800×800×800(L×W×H) can be customerize |
Rotating speed(rpm) | 1 ~5 adjustable, turntable diameter:300mm(IP 1.2 standard. Turntable can be tilted 15°) |
The height of the turntable | 200mm, it is adjustable. |
Spray ring radius:(mm) | 300 |
Swing angle range of the oscillating tube | 45°, 120°,360° |
Needle hole(mm) | φ0 .4 |
Distance between holes(mm) | 50 |
Water flow of each hole | 0.07 L/min +5% |
Spray pressure(Kpa) | 80-150 |
Pendulum swing | Max.±150° |
Swing speed | IP3 15times/min; IP4 5times/min |
Testing time | 1-999,999min(can be set) |
Rain pressure | 80~150Kpa (adjustable) |
IPX5 nozzle diameter | Φ6.3mm |
IPX6 nozzle diameter | Φ12.5mm |
IPX5 flow | 12.5±0.625(L/min) |
IPX6 flow | 100±5(L/min) |
Control system | Independent research and development |
The distance between the test equipment and the test sample | 200MM |
Chamber material | stainless steel or powder coating |
Window | Visible toughened glass |
Equipped with a modest turntable (used to place the sample) with adjustable speed. |
Conform to:
VDE0630
VDE0632
IEC60034
DIN40050
IEC60529
IEC60598-1
IEC 60335-1
IEC60745-1
ISO20653
IP Code of the IPX1, X2, X3, X4, X5, IPX6
Structural material:
1. High- quality acid -proof stainless steel 304 inner liner.
2. Outer box is made of stainless steel 304.
3. The sample table is equipped with a circular turntable with adjustable speed.
Safety protection device:
- Power overload and short circuit protection
- Ground protection
- Water shortage protection
- Alarm ring prompt
Features:
IPX1 IPX2 IPX3 IPX4 IPX5 IPX6 waterproof testing can be completed
Sample energization test
Full water spray test effect
![IEC 60529 IPX6 IP Test Equipment , Water Ingress Test Equipment 0](/photo/pl32998268-remark.jpg)

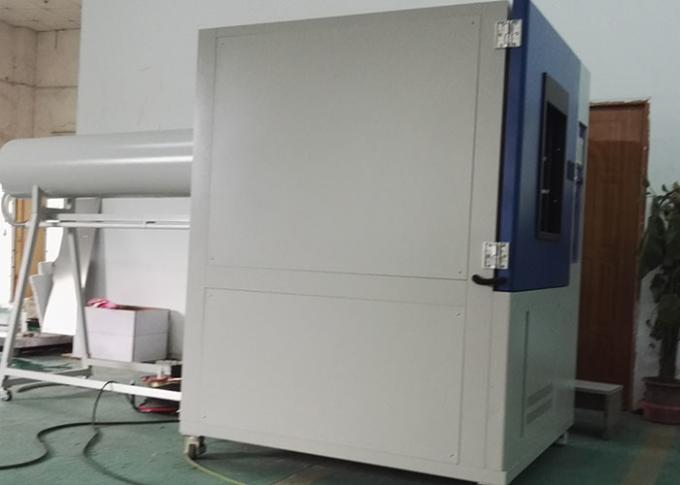

![IEC 60529 IPX6 IP Test Equipment , Water Ingress Test Equipment 1](/photo/pl32998261-remark.jpg)
