| Material: | Stainless Steel | Standard: | IEC60529 IPX5, IPX6 |
|---|---|---|---|
| Operation Panel: | Touch Panel | Outer Size: | 1000×800×1300mm |
| Volume Of Water Tank: | 450L | IPX5 Flow: | 12.5±0.625L/min |
| IPX6 Flow: | 100±5L/min | Turntable Size: | Φ600mm |
| Spraying Distance: | 2.5-3m | Flow Display: | Rotameter |
| High Light: | IPX6 Water Jet Test , IPX5 Water Jet Test , ipx5 waterproof test |
IEC 60529 IPX5 IPX6 Water Jet Tester Heavy Spray Test Equipment
Application:
The IPX5 IPX6 Water Jet Tester Heavy Spray Test Equipment is used for the testing of IPX5 and IPX6
The device to shell protection grade (IP code) based mainly for electrical and electronic products, LED products, lamps, electrical cabinets, communications, digital equipment, transportation and other products to simulate outdoor rain weather conditions, and test the performance of the product is waterproof, to determine whether the corresponding level of protection, in order to product’s design, development and test use.
Main Technical Parameters:
| Model | SC-IPX56AS |
| Operation panel | Touch panel |
| Flow display | Rotameter |
| Outer size | 1000×800×1300mm |
| Volume of water tank | 450L |
| IPX5 Flow | 12.5±0.625L/min |
| IPX6 Flow | 100±5L/min |
| Spraying distance | 2.5-3m Controled by experimenter |
| Turntable size | Φ600mm |
| Spray gun fixing method | Hand held spray gun |
| Safety protection measures | Leakage protection, water shortage protection, short circuit protection |
Conform to:
IEC60529
IEC60598-1
IEC 60335-1
IEC60745-1
VDE0630
VDE0632
IEC60034
DIN40050
ISO20653
IP Code of the IPX5 and IPX6
Other kind of IPX5 IPX6 waterproof test device for choose.
Waterproof test chamber is mainly used in electronic, electrical products, lamps and lanterns, electrical cabinets, electrical components, automobiles, motorcycles and their parts, and other products under the condition of the climate simulation in the rain, for the physical test of the products. Determine whether the product performance meets the requirements by measuring.
I) SC-IPX56AL with button menu.
II) SC-IPX56B
chamber, cycling use of water,
sample electrifying test.
III)SC-IPX56C
chamber, cycling use of water,
sample electrifying test,
Spray nozzles can swing automatically

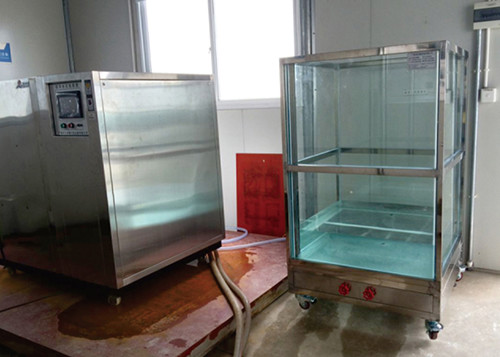

Customer usage site:
