Anti Electric Shock 50N IP2X Test Probe B Of IEC 61032

Standards:IEC 61032 Figure 2, EN60529 IP2X, IEC60529 IP2XColor:White
Material:Stainless Steel And NylonFinger Length:80±0.2mm
Force:0-50NHandle Length:10mm
Test Probe Diameter:1+0.05 MmDam-sphere Diameter:35±0.2mm
High Light:IP2X Test Probe B Of IEC 61032 ,  50N Test Probe B Of IEC 61032 ,  probe b of iec 61032

IEC60529 IP2X Test Probe B Test Finger Shell Anti Electric Shock​

Specification and technical parameters:

Parameters /ModelSC-F2BSC-F2B -ASC-F2B -BSC-F2B-F
NameStandard test fingerCircular baffle test fingerLarge baffle test fingerStandard test finger with force
737o 0 -10’37o 0 -10’37o 0 -10’37o 0 -10’
814o 0 -10’14o 0 -10’14o 0 -10’14o 0 -10’
9Ф12 0 -0.05Ф12 0 -0.05Ф12 0 -0.05Ф12 0 -0.05
14—-—-—-10-50N force


It can be used for anti-electric shock test when equipped with pluggable banana plugs and amphenol connector at the end of the handle , or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).

Product information:

This is a precision test finger made in accordance with many standards like

IEC 60529 IP2X,

IEC 61032 figure 2,

IEC60950 figure 2A,




UL1278 figure 8.4 and so on.

This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. This test finger probe consists of ditto, finger, base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°.

Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.

Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: waterproof and dustproof (IP) environmental test equipment; switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; household appliances safety test equipment; wire and cable test equipment; luminaires test equipment; electric tools test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.

Anti Electric Shock 50N IP2X Test Probe B Of IEC 61032 0

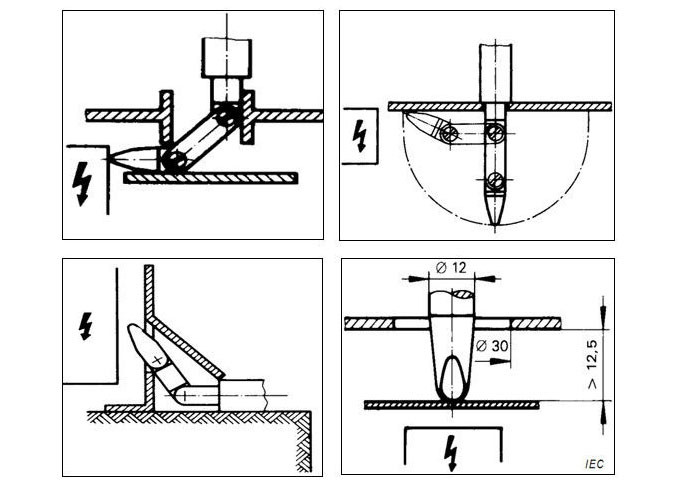

1. The standard test finger joint part cannot be touched with the live parts, or cannot be close to the dangerous

parts, and the 50mm-20mm baffle cannot enter.

2. The test of preventing from dangerous parts requires the test probe B with 10N±3N thrust. Generally it needs

to work with a force gauge.

3. The anti-electric shock requires working with anti-shock probe experiment device: connected to the anti-shock

probe experiment device (40V-50V), processing the test according to the relative standard, the buzzer ring is

electric shock prompted. View the pictures below:

Anti Electric Shock 50N IP2X Test Probe B Of IEC 61032 1
