IEC60068 Drop Impact Resistance Pendulum Hammer Impact Test

Usage:Impact Testing MachineStandard:IEC60068-2-75
Pendulum Shaft Length:0-1000mmMounting Bracket Quality:10±1Kg
Impact Element Mass:150±1g(0.2) / 200±1g(0.5) (optional)Material:Stainless Steel
Bracket Rotation Angle:±180° Arbitrarily AdjustableImpact Heigh:100mm, 150mm, 200mm, 250mm, 400mm
High Light:IEC60068 Pendulum Hammer Impact Test ,  1J Pendulum Hammer Impact Test ,  1J pendulum hammer

IEC60068 Pendulum Hammer Impact Test Apparatus For Drop Impact Resistance

Product details:

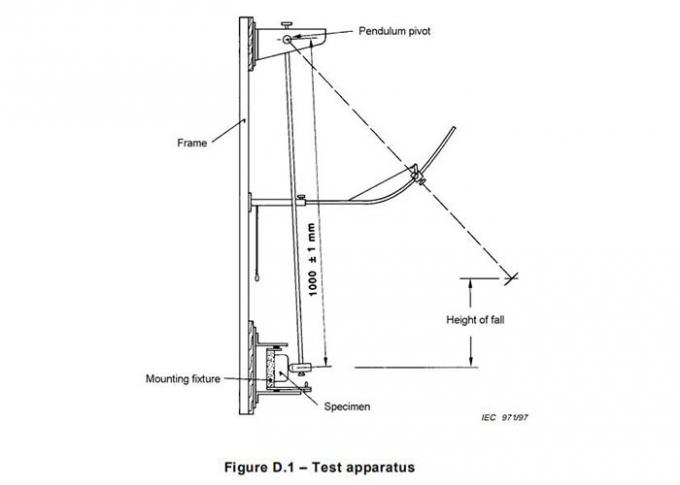

The pendulum impact test device is made according to the requirements of the Eh hammer test of the test method of the environmental test of the electrical and electronic products of IEC60068-2-75. The test device is mainly oscillated by the upper end around its swing axis in a vertical plane. The pendulum is composed. The axis of the pendulum axis is 1000 mm above the measuring point. The pendulum consists of a rigid pendulum shaft and a matching impact element. Test specimens that are heavier, bulky, or difficult to handle can be tested using a hand-held pendulum. The device is mainly used for mechanical strength testing of electrical accessories such as plugs, sockets and switches for household and similar purposes. The device is generally fixed vertically on a solid wall, and the mounting bracket can be adjusted front and rear, and the impact angle is adjustable.


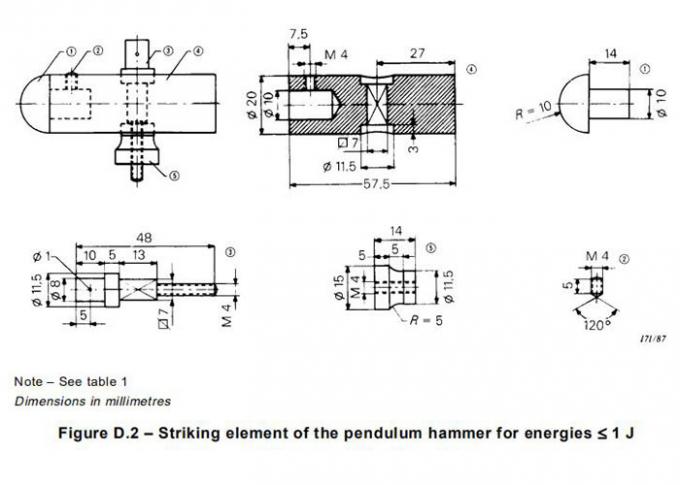

ItemTechnical Parameters
Impact element mass150±1g(0.2) / 200±1g(0.5) (optional)
Mounting bracket quality10±1Kg
Bracket rotation angle±180° arbitrarily adjustable
Pendulum shaft length1000±1mm
Swing shaft materialsteel pipe with outer diameter of 9 mm and wall thickness of 0.5 mm
Pendulum shaft mass1mm=1g
Impact height100mm, 150mm, 200mm, 250mm, 400mm
