Water Immersion Tank IPX8 Waterproof Test Equipment

Standard:IEC 60529, EN 60529Application:Water Spray Testing For IPX7 IPX8
Interior Material:SUS304 Stainless Steel PlatePower:Electronic
Testing Time:0-99minPressure Adjustment Range:0 ~ 5bar (can Be Customized)
Pressure Gauge Accuracy:0.25 DegreeMaximum Limit Pressure:6 Bar
Pressure Protection:Pressure Switch ProtectionPressure Tank:Diameter 0.8 Meter, Height 1 Meter (can Be Customized)
High Light:Waterproof Test Equipment SUS304 IPX7 ,  SUS304 IPX7 Waterproof Test Equipment ,  SUS304 IPX8 water spray test equipment

IEC60529 IPX7 IPX8 Water Immersion Tank Waterproof Test Equipment

Technical parameters:

Pressure TankStainless steel tank, diameter 0.8 meter, height 1 meter (can be customized)
Pressure adjustment range0 ~ 5bar (can be customized)
Pressure systemStainless steel pump + frequency converter
Pressure gauge accuracy0.25 degree, range: 6bar
Testing time0-99min
Maximum limit pressure6 bar
Pressure protectionPressure switch protection
ConnectionConnect to the water supply equipment by 3/4 high pressure steel wire hose connection

Description:

Assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.

Confirm to standards:

IEC 60529 IPX7 IPX8;

EN 60529 IPX7 IPX8;

IEC 60884-1;

IEC 60598-1;

IEC 60335-1 and so on.

Feature:

1. Entire tank adopts SUS304# stainless steel high accuracy integrated forming,

ensure it will not rust and water-tight after long time use, adjust the test pressure according to the high precision pressure regulating valve. Pressure regulating valve with pressure stabilizing function, it can keep stable test pressure all the time after the pressure has been adjusted.

2.The pot cover is rotated and lifted by the screw thread, it can rotate and move away from the hole after lifting.

(when pressure is greater than 50m depth test, must use special flange lock to lock cover)

3.The whole tank surface blasting treatment, smooth and beautiful.

There are two kinds of this tank.

1)SC-IPX8-1 without window.

Water Immersion Tank IPX8 Waterproof Test Equipment 0

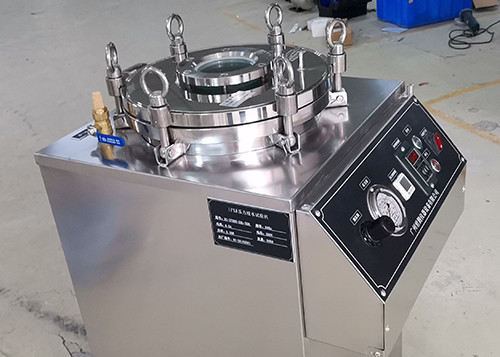

2)SC-IPX8-W with window.

Water Immersion Tank IPX8 Waterproof Test Equipment 1

Waterproof Rating:

IPX-1 Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.
Unit is placed in its normal operating position.
IPX-2 Protected against falling water when tilted up to 15 degrees – Same as IPX-1 but unit is tested in 4 fixed positions – tilted 15 degrees in each direction from normal operating position.
IPX-3 Protected against spraying water – Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.
IPX-4 Protected against splashing water – Same as IPX-3 but water is sprayed at all angles.
IPX-5 Protected against water jets – Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.
IPX-6 Protected against heavy seas – Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters.
IPX-7 Protected against water immersion – Immersion for 30 minutes at a depth of 1 meter.
IPX-8 Protected against water submersion – The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.

Water Immersion Tank IPX8 Waterproof Test Equipment 2
