IEC60884 Fig13 Lateral Strain Resistance Checking Device

Standard:IEC60884 Figure 13Lifting Heavy Weights:5N
Test Samples:Socket Of Rated Current Is ≤ 16A And The Voltage Is ≤ 250VPower:By Manual
Warranty:12 MonthsCustomized Support:OEM
Feature:ReliableMaterial:Stainless Steel
High Light:OEM lateral strain resistance Checking Device ,  IEC60884 lateral strain resistance Checking Device ,  lateral strain resistance test equipment

Device For Checking The Resistance To Lateral Strain IEC60884 Fig13


StandardIEC60884 Figure 13
Lifting heavy weights5N
Test samplessocket of rated current is ≤ 16A and the voltage is ≤ 250V


This device confirms standard: IEC 60884-1 2013 clause 13.14 figure 13

This device is use to check whether any damage to the socket-outlets ratings up to 16A and 250V when a inserted appliance applying a lateral strain to it.

Test sample: Socket-outlets

Feature: Made according to standard dimension requirements, use to check the mechanical strength of socket hole

Testing :

Socket-outlets shall withstand the laterin imposed by equipment likely to be introduced into them .

For socket-outlets having ratings up to and including 16A and 250V,compliance is checked by means of device shown in figure 13.

1. Each specimen is mounted on a vertical surface with the plane through the socket-contacts horizontal .

The device is then fully engaged and a weight hung on it such that the force exerted is 5N.

2. The device is removed after I min and the socket-outlet is turned through 90,on the mounting surface ,

The test is made four times, the socket-outlet being turned through 90 after each engagement .

3. During the test the device shall be not become disengaged from the socket-outlet.

4. After the test , the socket-outlet shall show no damage within the meaning of this standard ,

   in particular ,they shall comply with the requirements of clause 22.

Advantage service:

We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.

All our workers are experienced and skilled.
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.

Advantaged pictures:

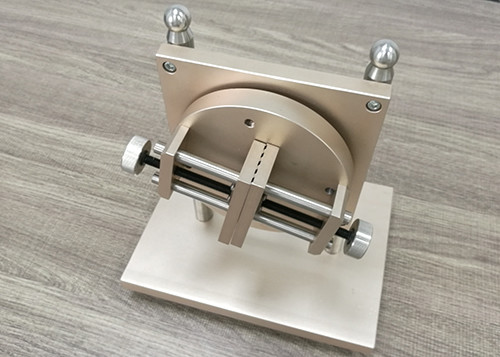

IEC60884 Fig13 Lateral Strain Resistance Checking Device 0

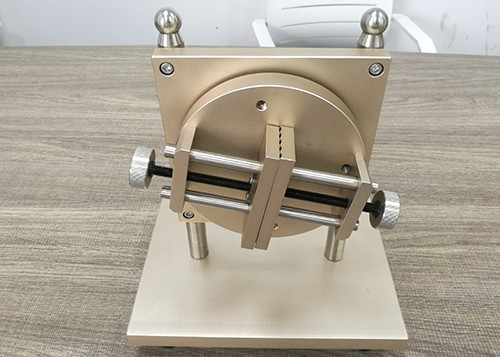

IEC60884 Fig13 Lateral Strain Resistance Checking Device 1

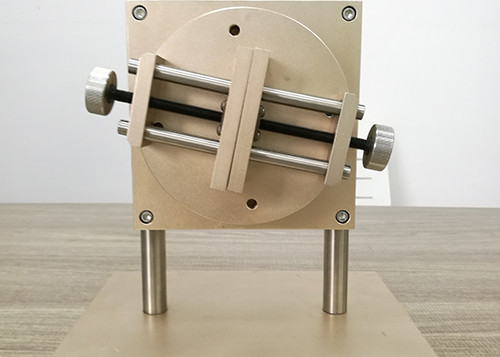

IEC60884 Fig13 Lateral Strain Resistance Checking Device 2
